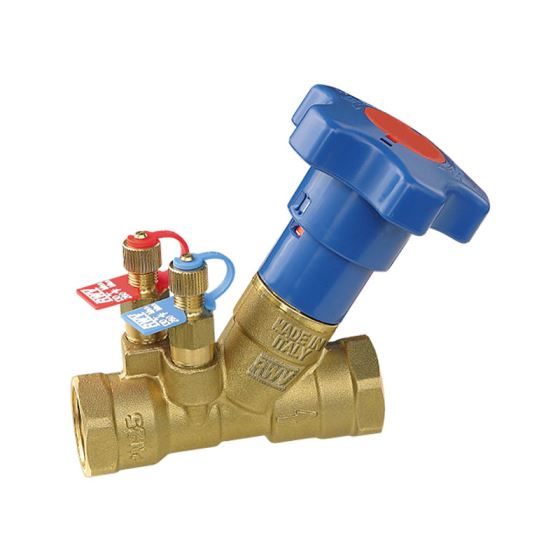

  • RedWhiteValve_Blue_Green_Balancing_9517AB
DZR brass fixed orifice double regulating globe valve
Venturi insert
Positive shut-off with memory stop
Intended for HVAC
Threaded F/F (ASME B1.20.1 - NPT)
Design according to BS7350
Tolerance on nominal Cvs ±3% (test according to BS7350)
Multi-turn adjustment (four full turns minimum)
With test points
Meet BAA requirement
300WOG
Working conditions:
Water: from 15°F to 260°F
below 32°F only for water with added antifreezing fluids
over 212°F only for water with added anti-boiling fluids
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

CAD

BIM

Size

Operating Temperature [Min]

Operating Temperature [Max]

Operating Pressure [Max]

Length

Height

Weight

9517X 1/2 N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A X-1/2 N/A 15 ºF N/A 260 ºF N/A 300 psi N/A 3.46 in N/A 4.06 in N/A 1.240 lb
9517U 1/2 N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A U-1/2 N/A 15 ºF N/A 260 ºF N/A 300 psi N/A 3.46 in N/A 4.06 in N/A 1.240 lb
9517L 1/2 N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A L-1/2 N/A 15 ºF N/A 260 ºF N/A 300 psi N/A 3.46 in N/A 4.06 in N/A 1.240 lb
9517 1/2 N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 1/2 N/A 15 ºF N/A 260 ºF N/A 300 psi N/A 3.46 in N/A 4.06 in N/A 1.240 lb
9517 3/4 N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 3/4 N/A 15 ºF N/A 260 ºF N/A 300 psi N/A 3.78 in N/A 4.06 in N/A 1.420 lb
9517 1 N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 1 N/A 15 ºF N/A 260 ºF N/A 300 psi N/A 3.94 in N/A 4.06 in N/A 1.680 lb
9517 1-1/4 N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 1-1/4 N/A 15 ºF N/A 260 ºF N/A 300 psi N/A 4.63 in N/A 4.85 in N/A 2.740 lb
9517 1-1/2 N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 1-1/2 N/A 15 ºF N/A 260 ºF N/A 300 psi N/A 5.00 in N/A 4.94 in N/A 3.440 lb
9517 2 N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 2 N/A 15 ºF N/A 260 ºF N/A 300 psi N/A 5.72 in N/A 5.34 in N/A 4.740 lb
